The PRO-CLEAN Water Cooling Channel Cleaning Machine is developed for maintaining the internal cooling channels of extruder barrels and related thermal control systems. In extrusion production, blocked or scaled cooling channels can reduce heat exchange efficiency, cause unstable barrel temperature, and affect material processing consistency. PRO-CLEAN helps manufacturers inspect, clean, and restore cooling channel performance before these issues lead to production instability.
During maintenance, the machine can check the water channel condition without removing the full barrel structure. It supports flow inspection, leakage checking, and channel dredging, helping operators understand whether the cooling circuit is smooth, partially blocked, or affected by internal deposits. This makes it suitable for regular preventive maintenance in extrusion workshops, mold maintenance areas, and injection molding facilities.

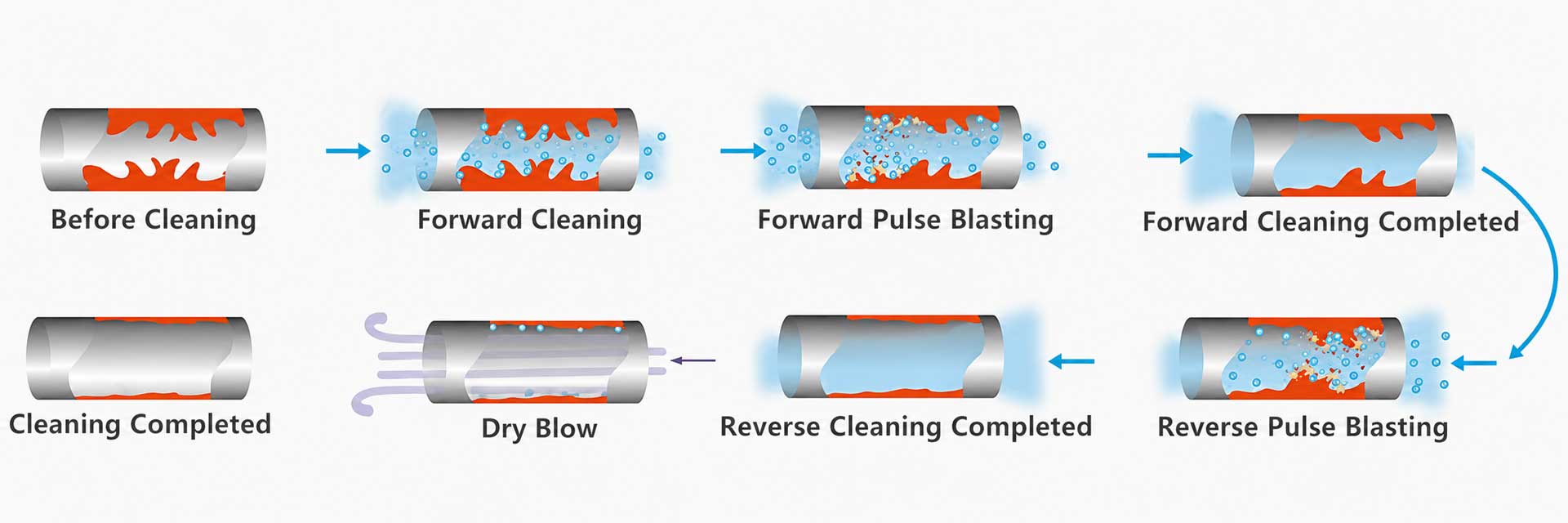

The cleaning process uses an environmentally friendly solvent and a filtration system to collect waste liquid and impurities. This helps protect the inner wall of the water channel while reducing contamination risks during maintenance. For factories that need frequent product changes, continuous production, or strict temperature stability, PRO-CLEAN provides a practical way to maintain barrel cooling efficiency and extend equipment service life.
With simple operation, high working efficiency, and automatic test report generation, PRO-CLEAN allows maintenance teams to visually record the water channel status before and after cleaning. This supports more accurate maintenance planning, reduces unexpected downtime, and helps keep extrusion temperature control stable over long-term production.

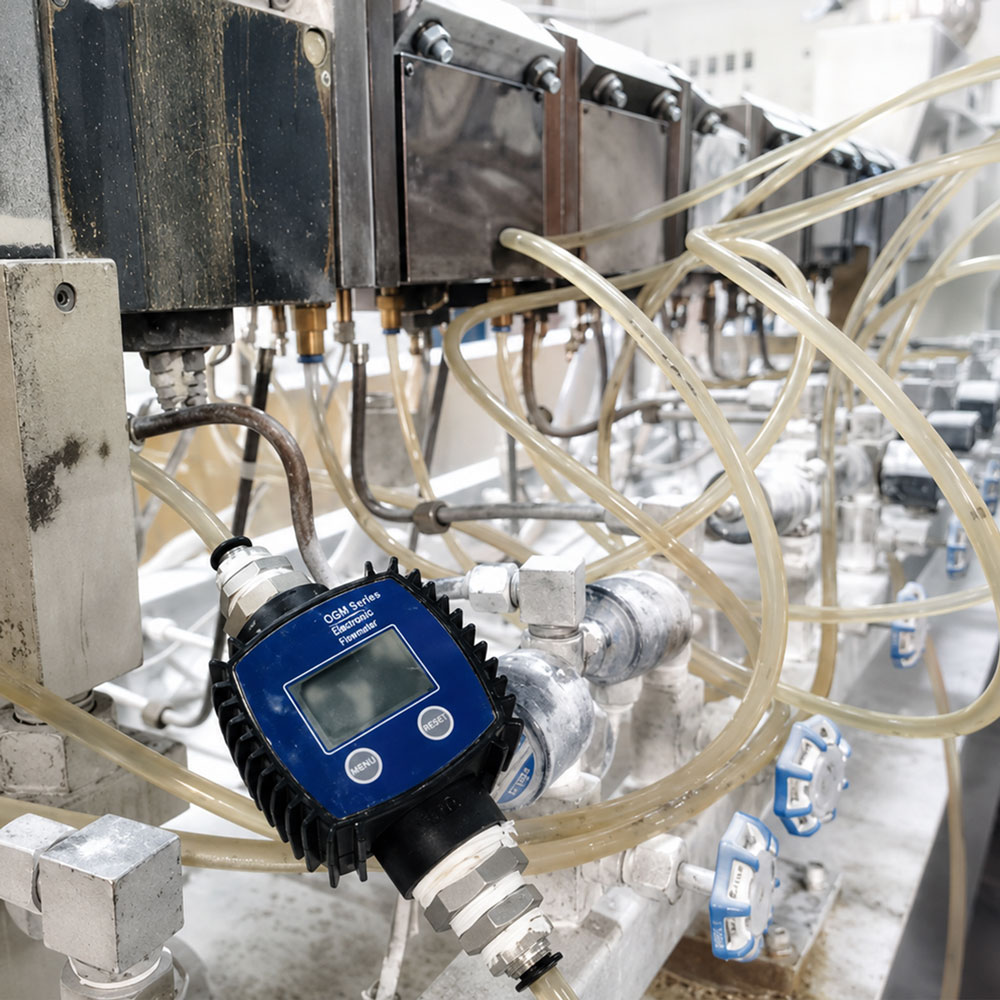

No need to disassemble the barrel during extruder maintenance; enables online detection of water channel volume, flow rate and leakage of the whole barrel.
Allows regular non-destructive cleaning and dredging of extruder water channels to prevent blockage and maintain barrel temperature control accuracy.
Easy operation, high efficiency, supporting simultaneous cleaning of 4 barrels.
Adopts eco-friendly solvent; waste liquid flows into filter device without damaging water channel inner walls or causing environmental pollution.
Automatic test report generated for visual recording and analysis of water channel status and cleaning effect.

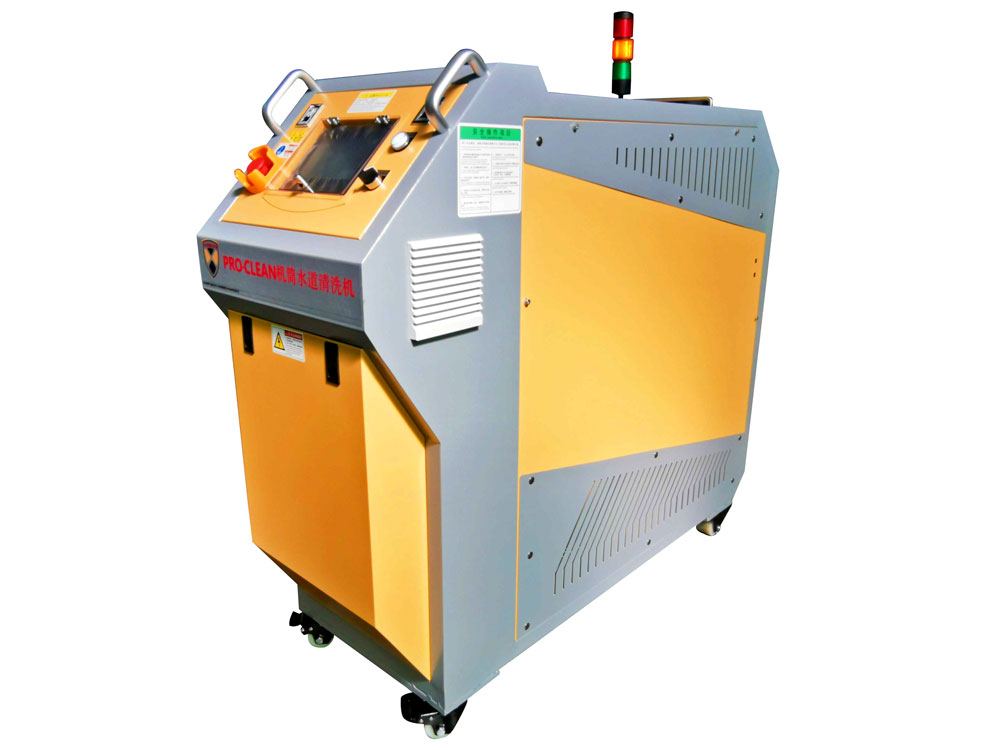

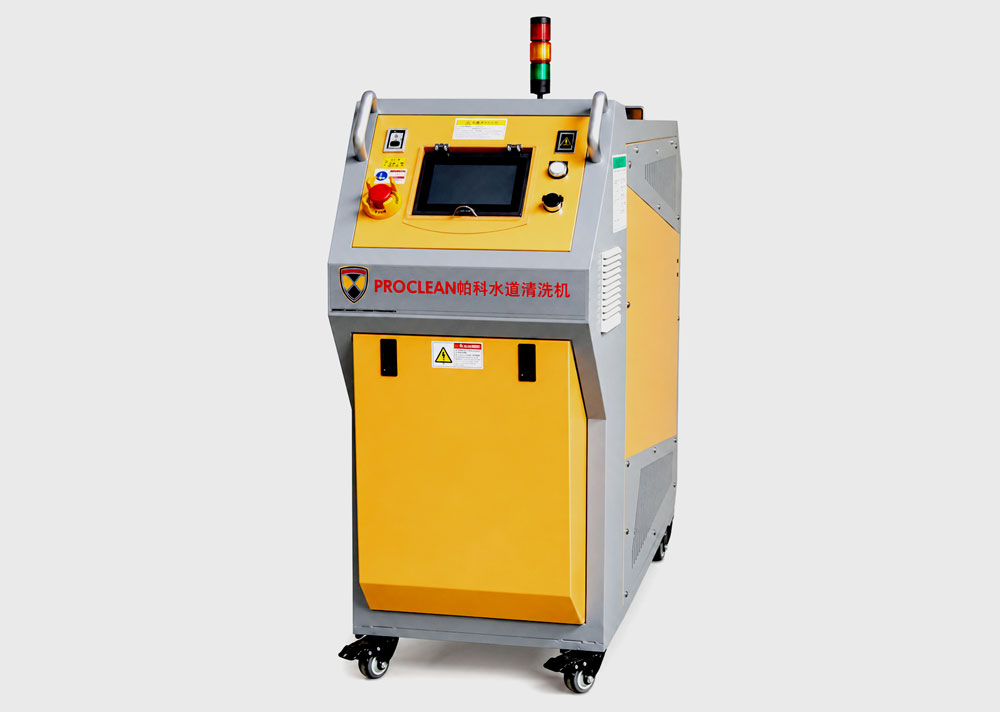

| PRO CLEAN COOLING CHANNEL CLEANING MACHINE | |
|---|---|
| Overall Dimensions | L1600 × W500 × H1200 mm |
| Electricity | AC 380V / 50Hz |
| Total Weight | 290 KG |
| Power | 2.5 KW |
| Water Tank Capacity | 100 Liters |
| Water Pressure | 0.2–0.5 MPa |
| Pipe Connection | DN25 / DN10 |
| PRO CLEAN COOLING CHANNEL CLEANING MACHINE | |
|---|---|
| Inlet / Outlet | 4 In / 4 Out |
| Air Pressure | 0.6–0.9 MPa |
| Filters | 2 Sets |
| Solvent | Neutral |
| PLC Controller | Mitsubishi |
| Electrical Parts | Schneider |
| Pump Brand | SMC |

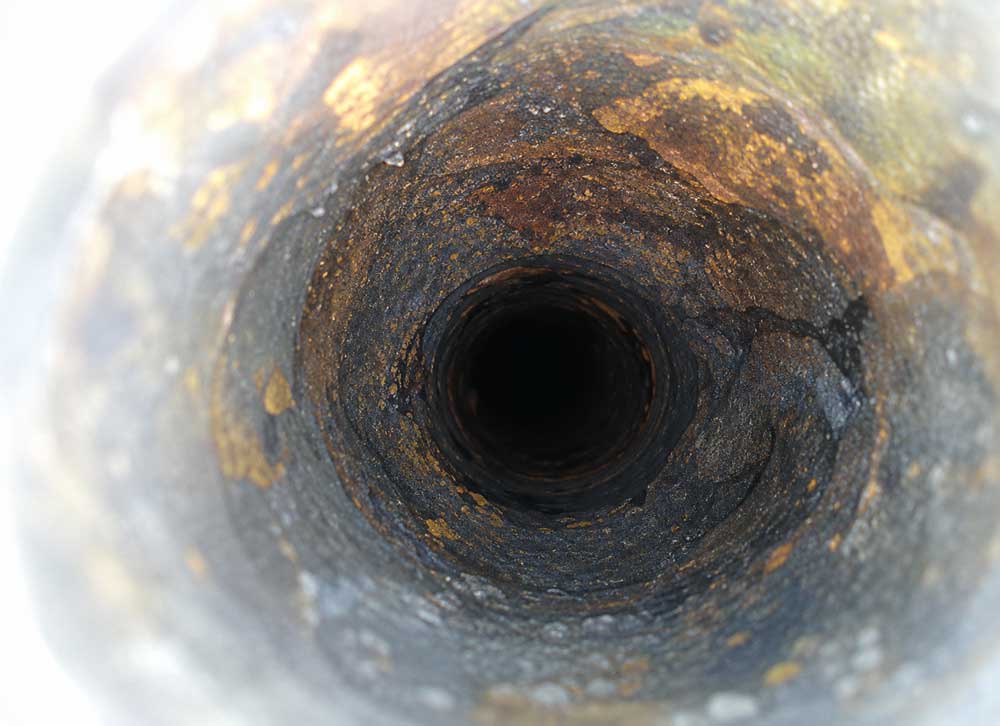

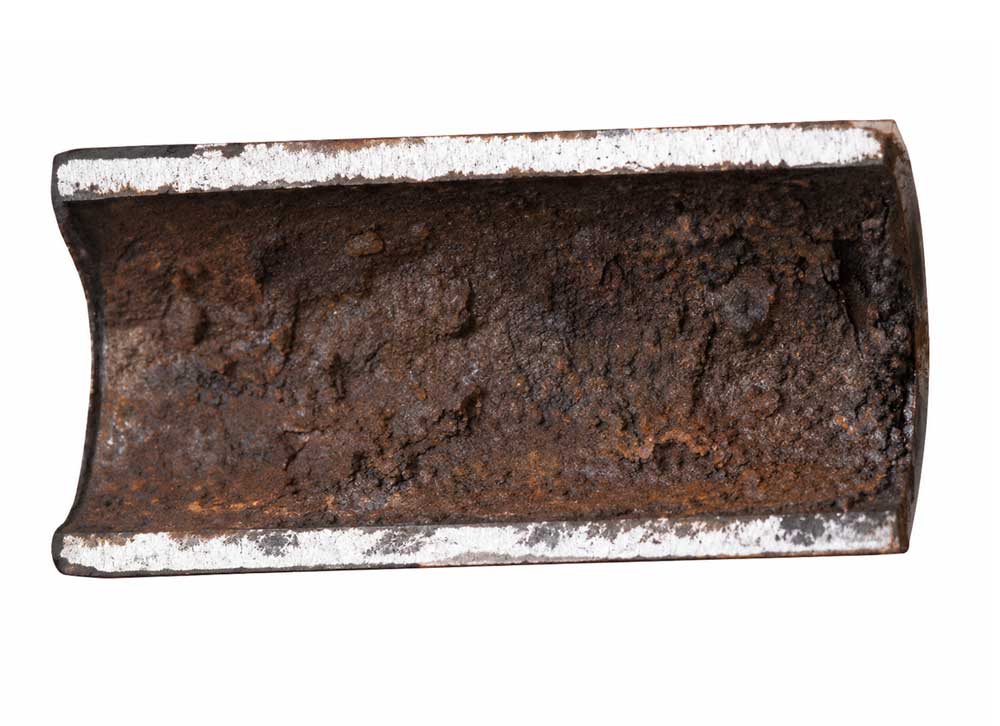

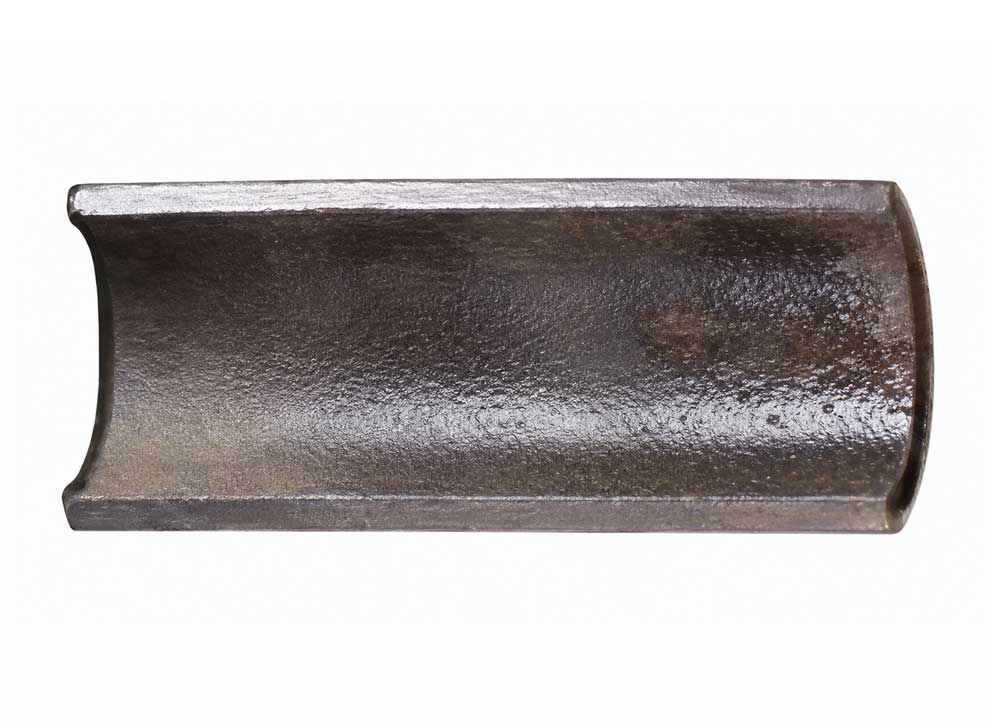

BEFORE CLEANING
BEFORE CLEANING

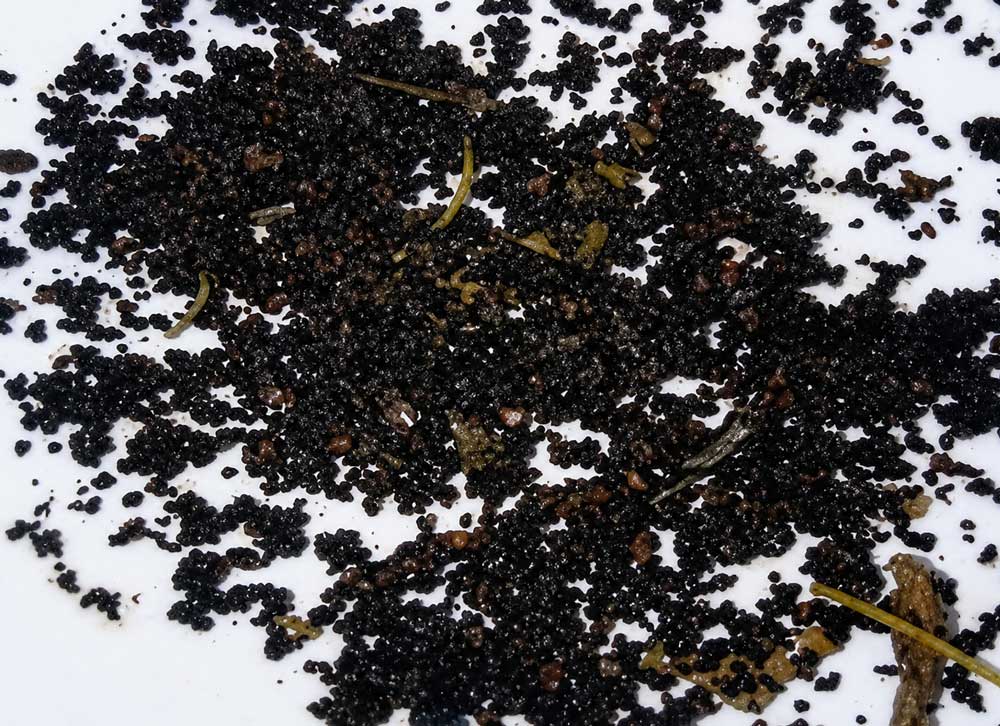

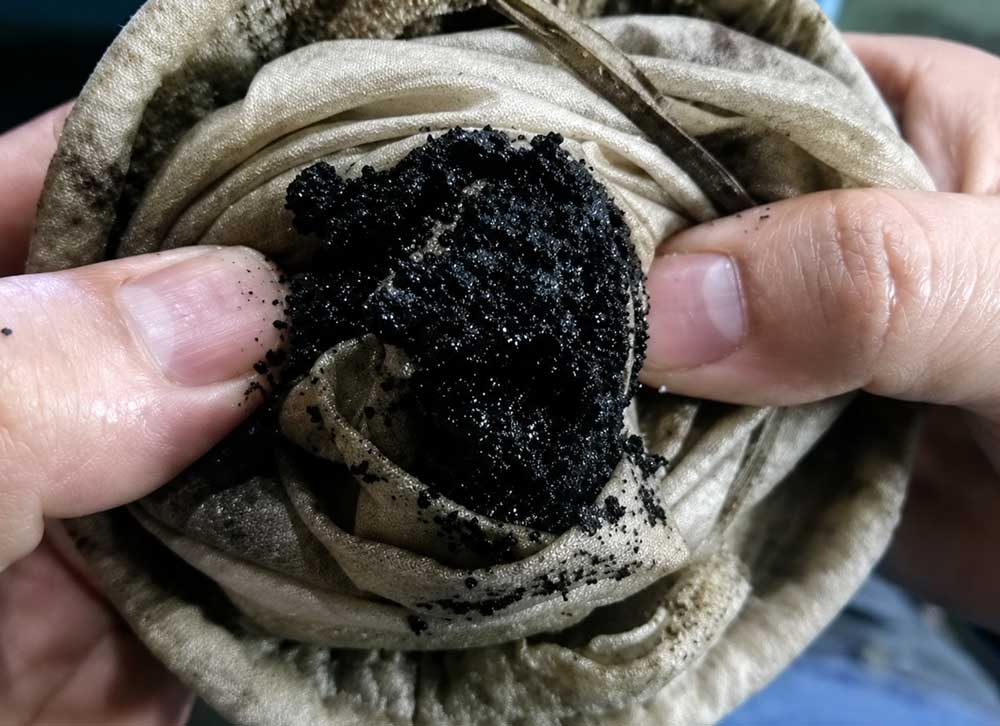

IMPURITIES
