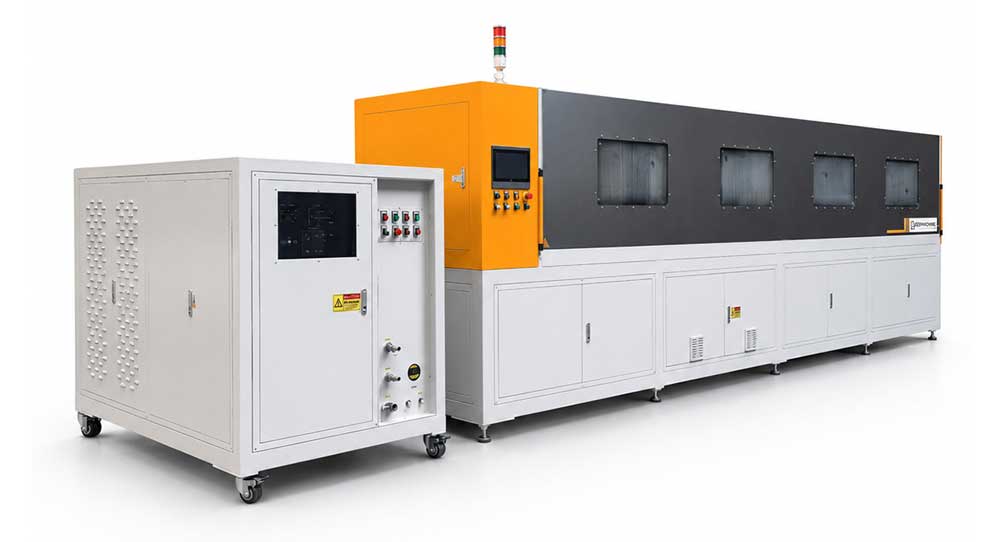

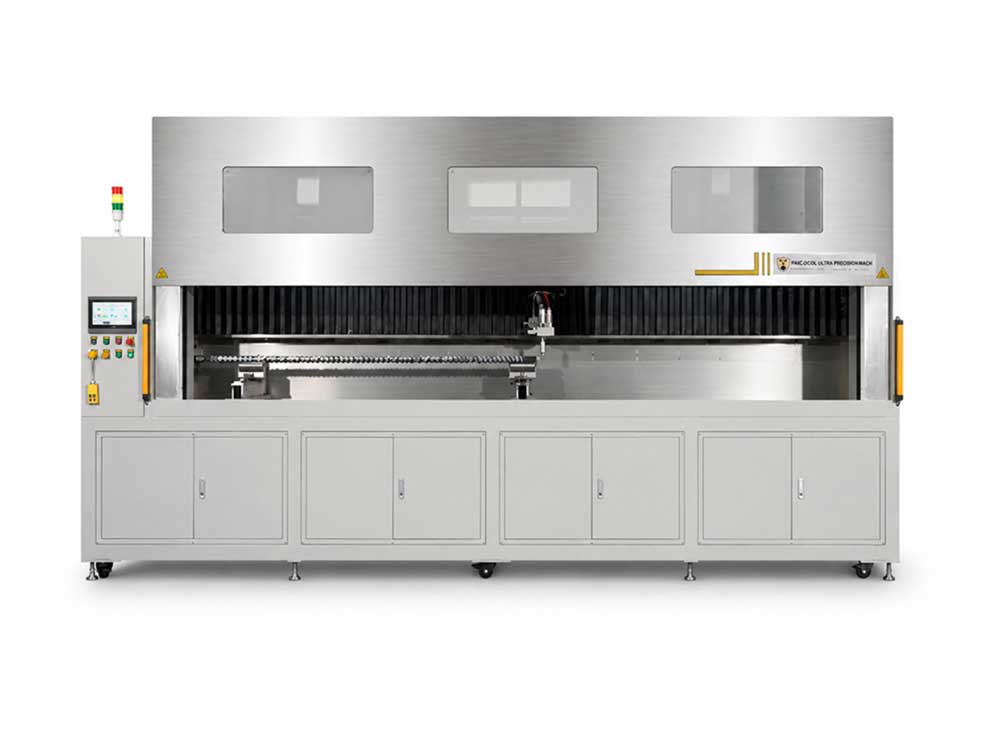

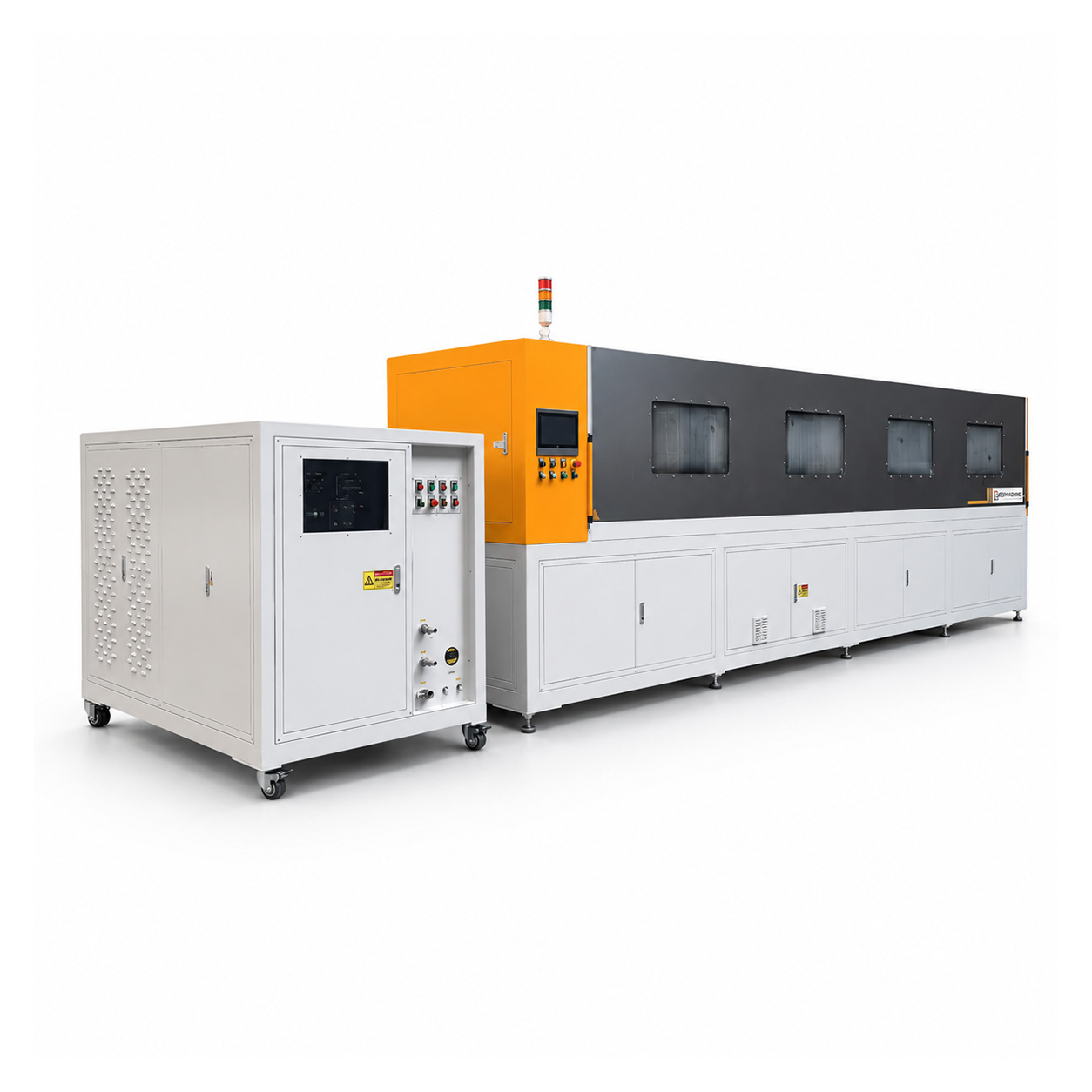

PRO-COOL is engineered for high-performance cleaning of extrusion screws and related components used in plastics processing industries. The machine uses a non-destructive cleaning process that effectively removes stubborn material residue while preserving the original structure, hardness, and dimensional accuracy of the screw surface.
Compared with flame burning, incineration, or manual brushing, it avoids high-temperature damage, screw deformation, oxidation, and hardness loss, helping extend component service life and maintain stable extrusion performance.

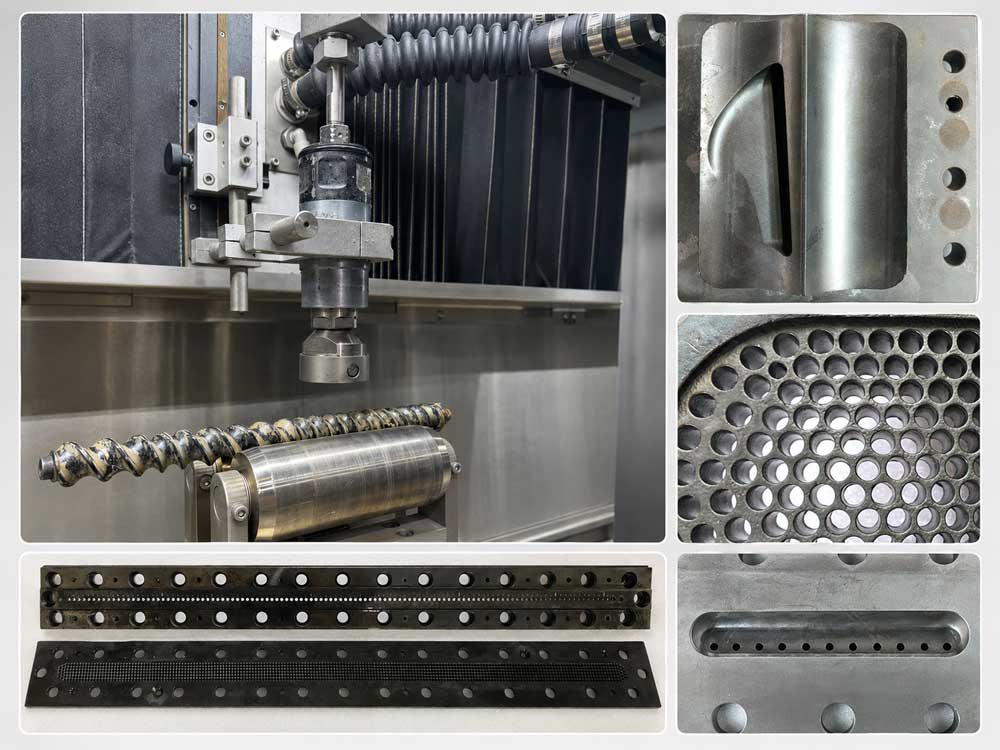

The universal cleaning structure allows the machine to handle different screw sizes and extrusion accessories. In addition to twin-screw and single-screw extruder screws, the system can clean die plates, breaker plates, shafts, nozzles, mandrels, and other extrusion tooling components.
This flexibility makes the equipment suitable for plastics compounding, masterbatch production, polymer processing, recycling, and other extrusion applications where frequent material changes and regular maintenance are required.
Non-destructive and high-efficiency cleaning for extruder screws.
Universal design to meet the cleaning needs of various screw types.
The screws can be dried with compressed air and given anti-rust treatment after cleaning.
Extremely low water consumption during cleaning; contaminants can be filtered and collected, featuring environmental friendliness and low operating costs.
No toxic fume or smoke generated in the cleaning process. Completely dust-free, safe and harmless, saving time and labor costs.
No need for flame burning, incineration or manual brushing. It avoids screw deformation and hardness degradation caused by high-temperature exposure.

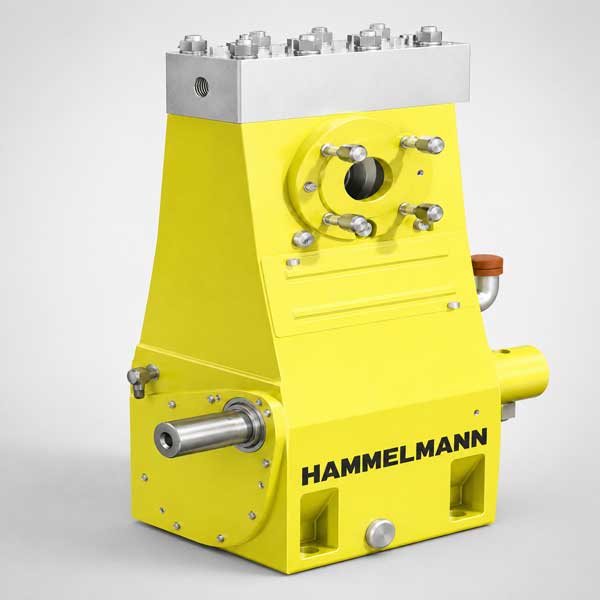

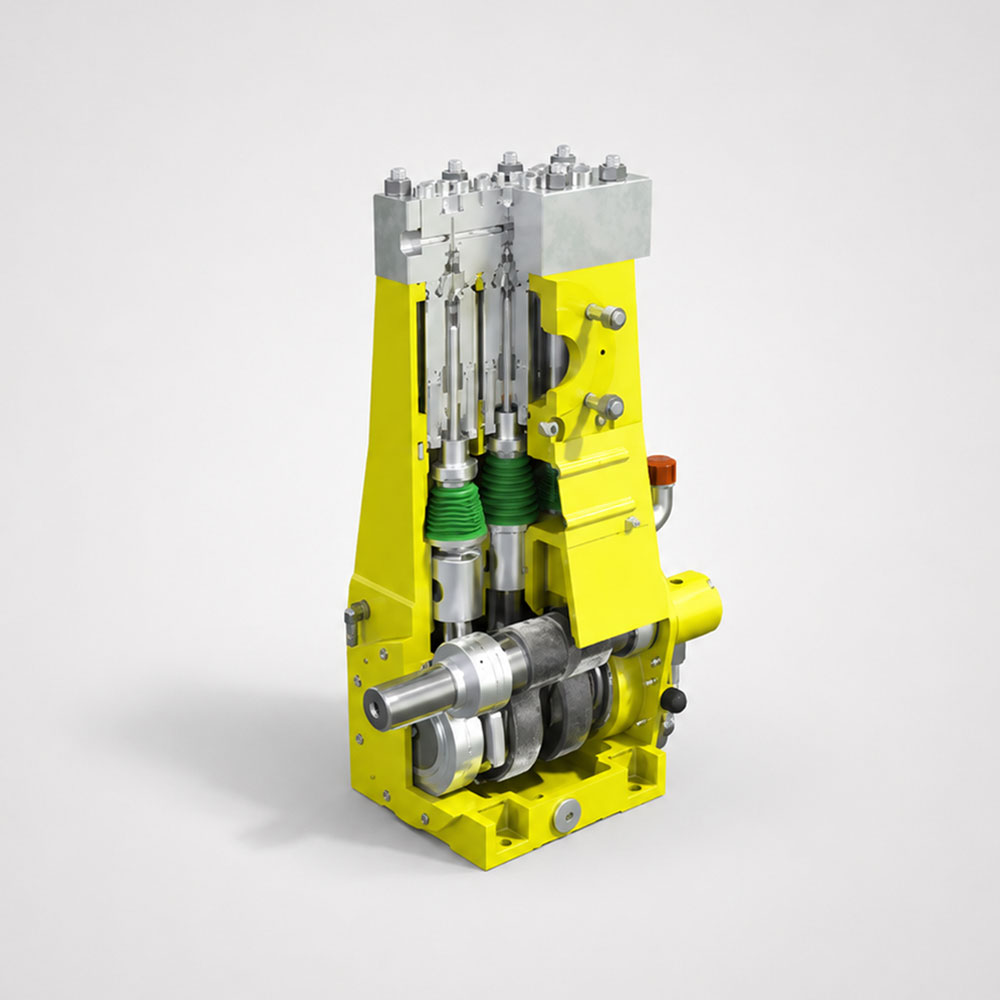

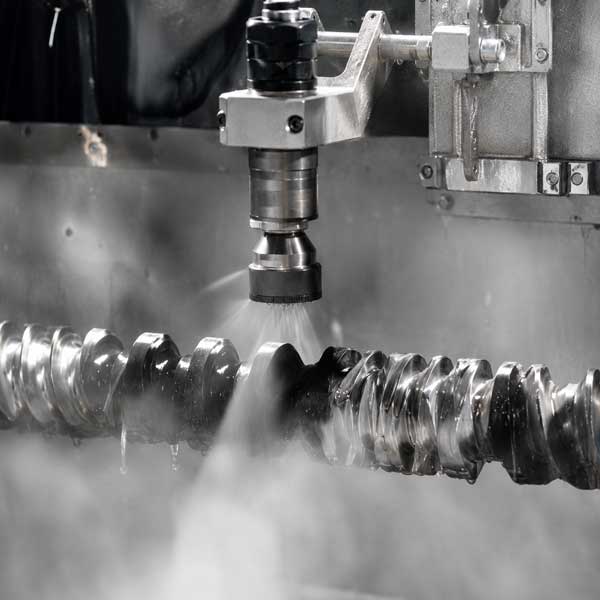

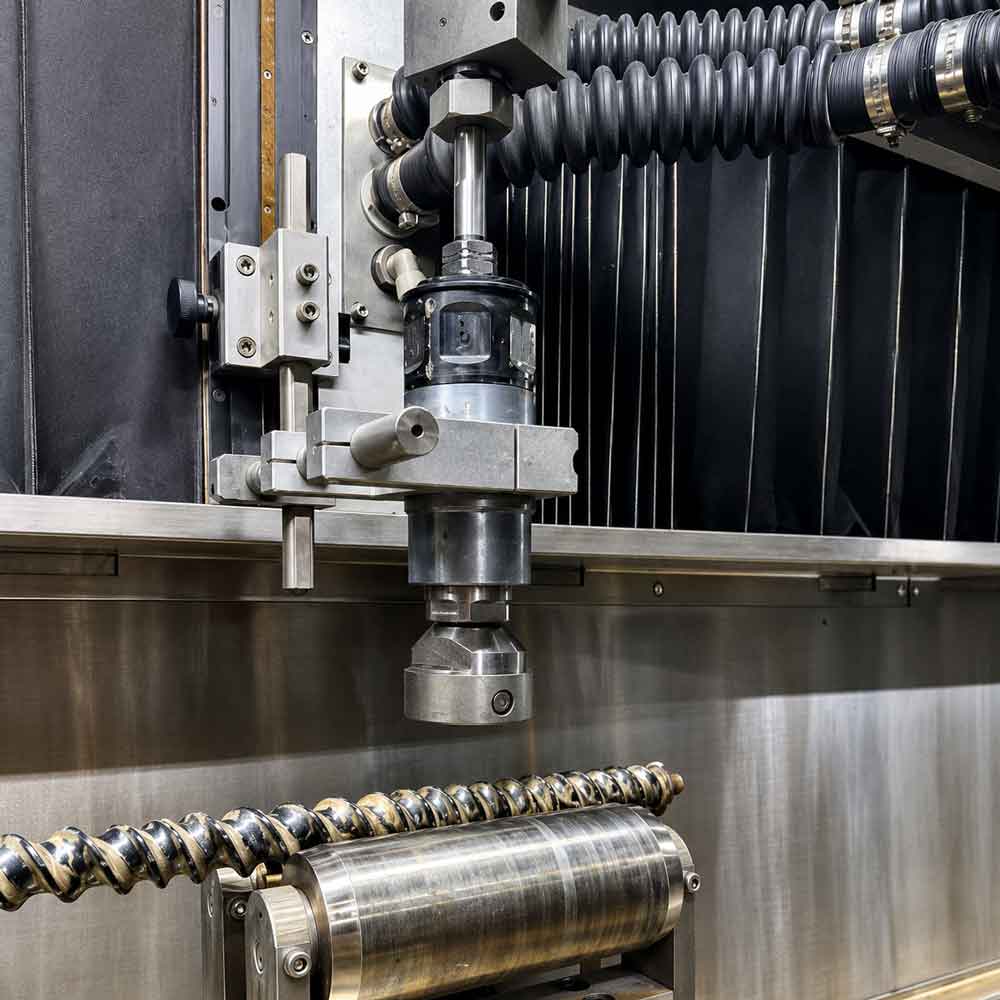

Hammelmann High-Pressure Pump
Imported original Hammelmann high-pressure pump with 2100 kg cleaning pressure and 8.9 L/min flow rate for powerful and reliable cleaning performance.

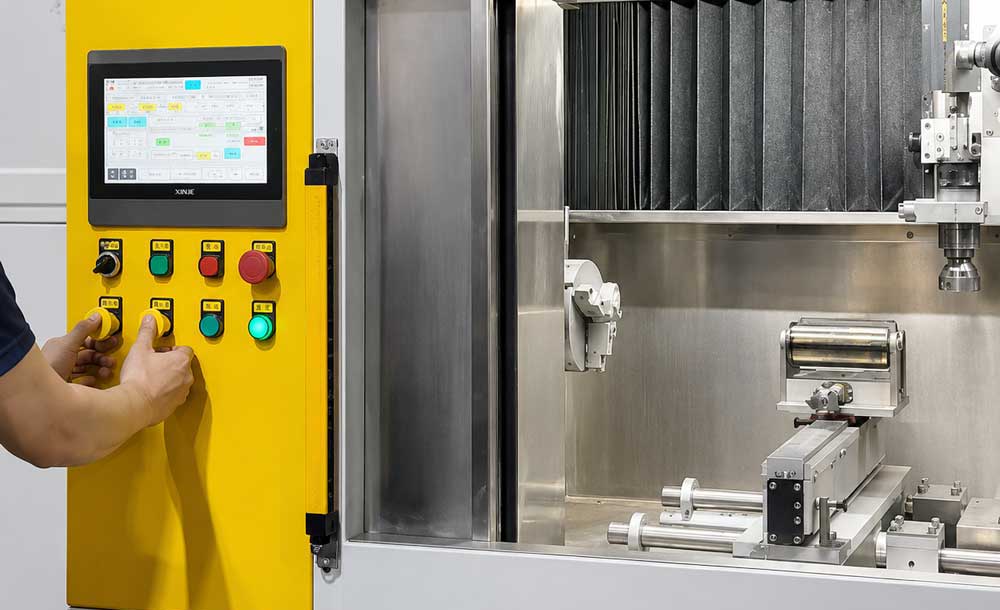

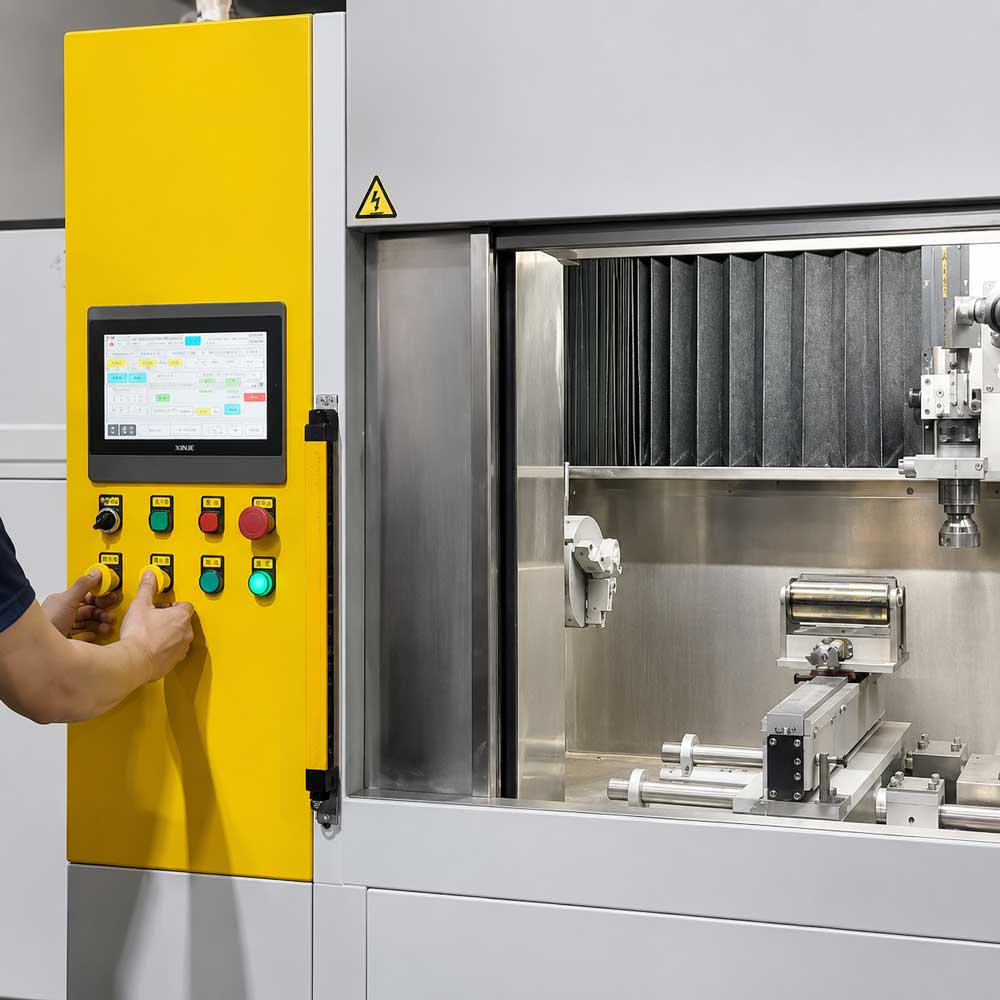

Easy and Intelligent Operation

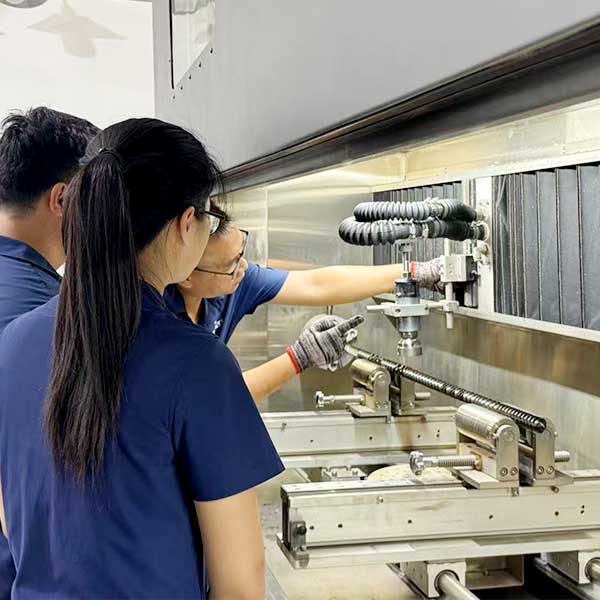

PLC control system with automated cleaning process provides convenient, efficient, and user-friendly operation.
Average Cleaning Time Within 30 Minutes
Efficient non-destructive cleaning removes residual materials and contamination effectively, helping prevent secondary pollution during the next production cycle.
Multiple Cleaning Functions

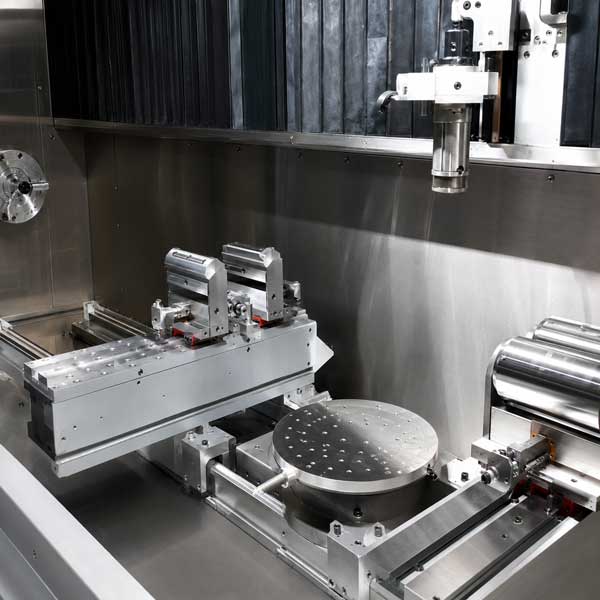

Optional rotating worktable supports cleaning of die plates, breaker plates, filter screens, mandrels, and other extrusion components.
| Application Range | |
| Maximum Cleaning Diameter | Ø180 mm (Customizable) |
| Maximum Cleaning Length | 6500 mm (Customizable) |
| Technical Specifications | |
| Water Filtration Level | 2-stage filtration |
| Pump Pressure | 2100 bar |
| Cleaning Medium | Water |
| Water Flow Rate | 8.9 L/min |
| Cleaning Efficiency | Average 30 min per screw |
| Residue Collection | Automatic transfer to filtration system |
| Safety Door | Pneumatic control |
| Machine Dimensions | 4500 / 5500 / 6500 / 7500 (L) × 1000 (W) × 1800 (H) mm |
| Residue Filtration | Two-stage filtration for solid particles above 1 mm diameter |
PRO-COOL delivers effective cleaning performance for a wide range of extrusion materials and compounds. The cleaning process removes carbonized residue, polymer buildup, and processing contamination without damaging the screw surface.

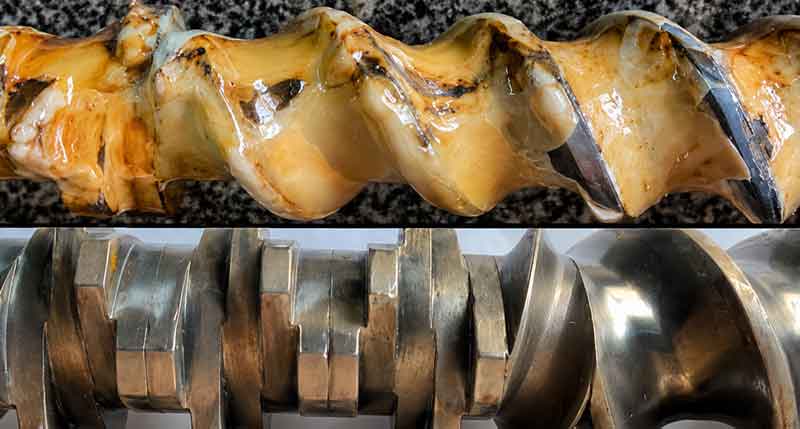

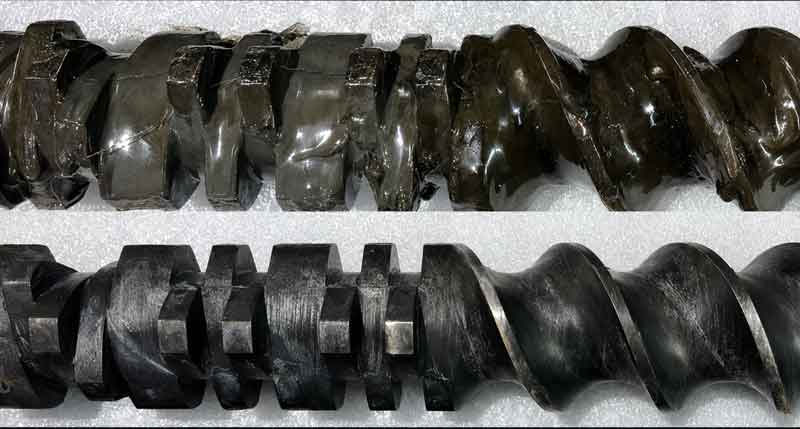

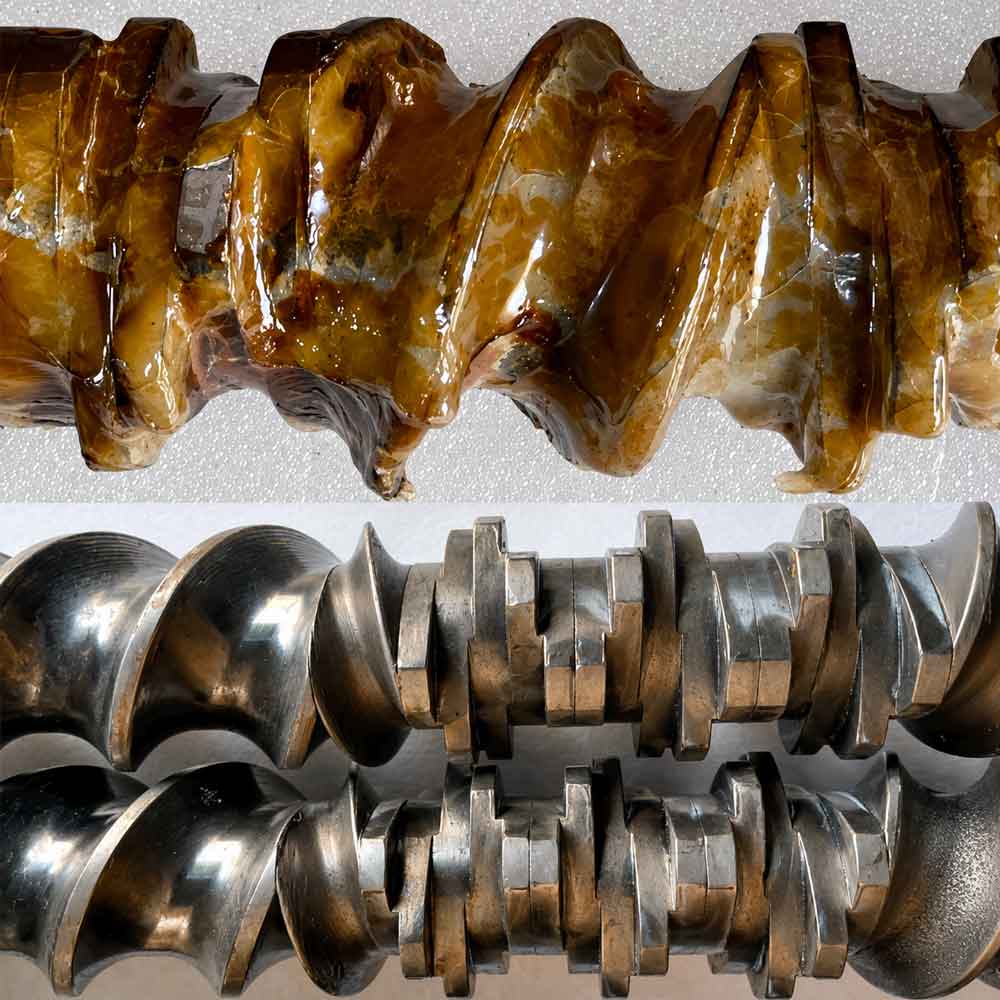

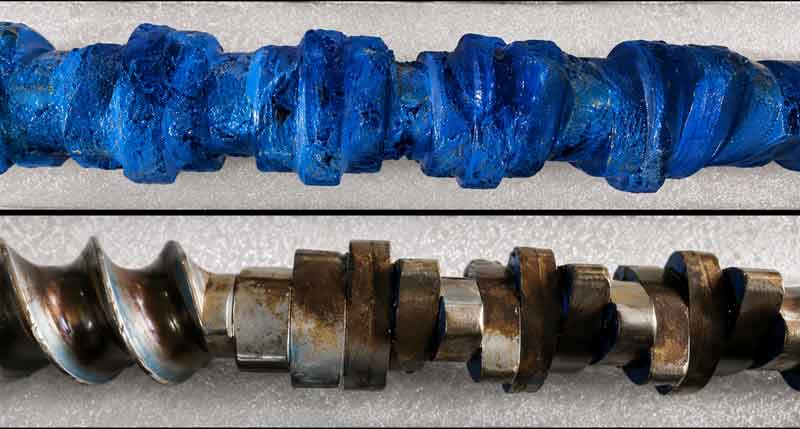

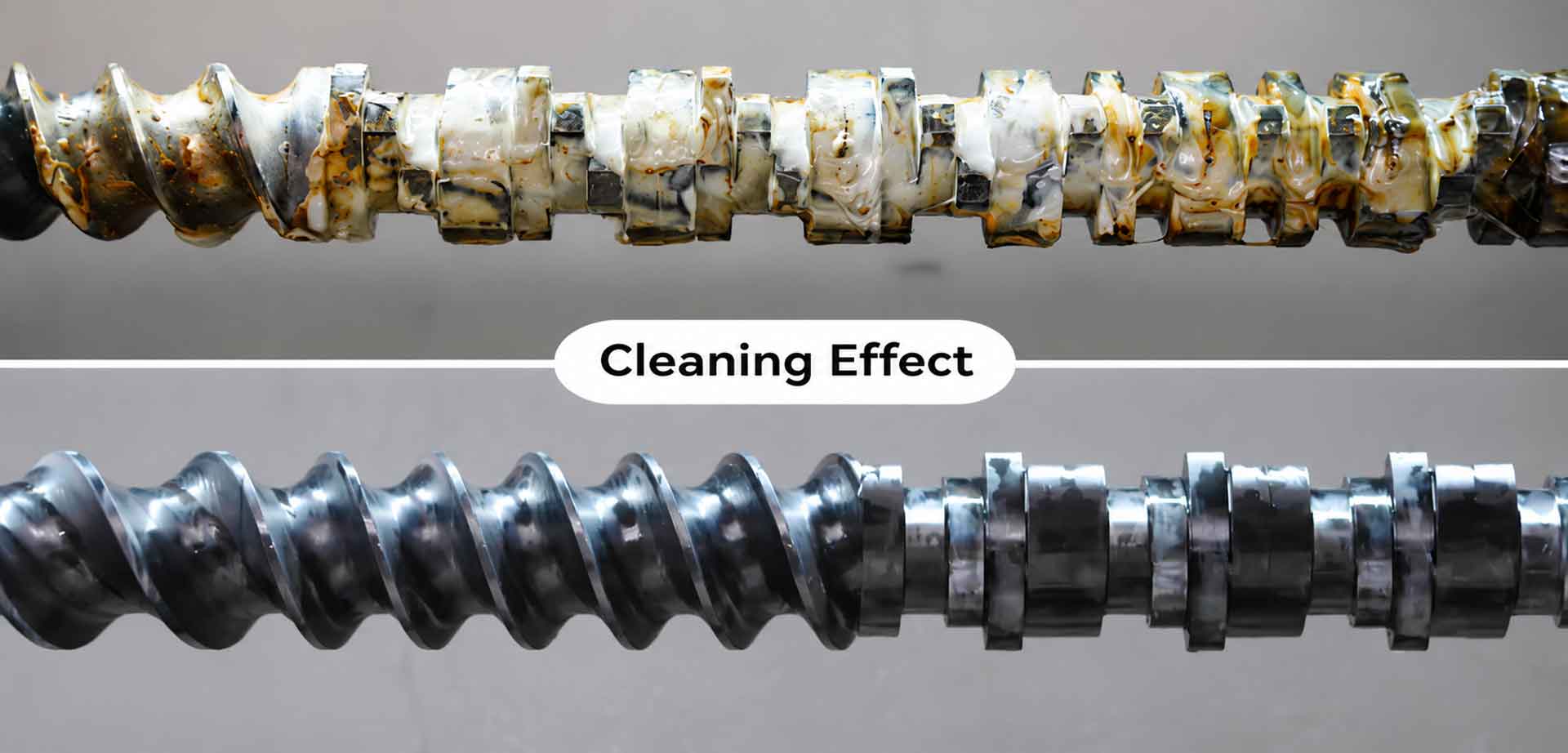

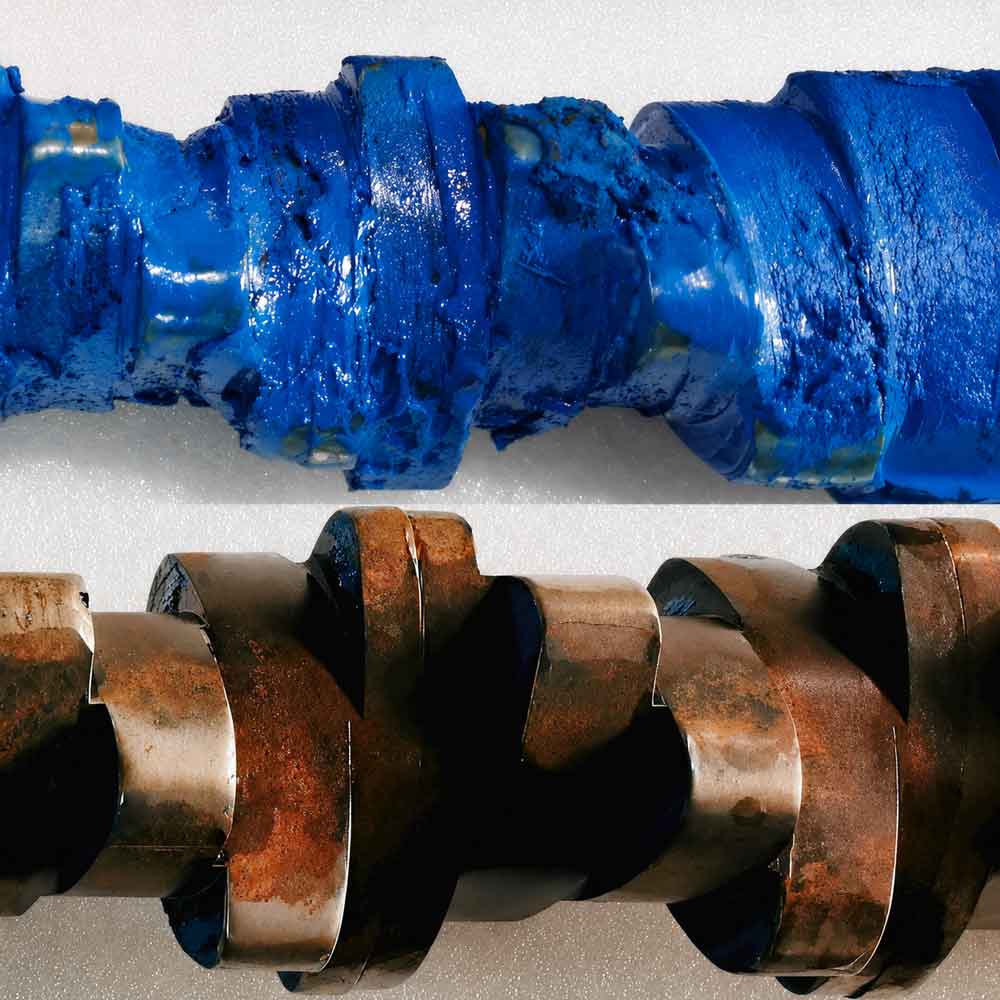

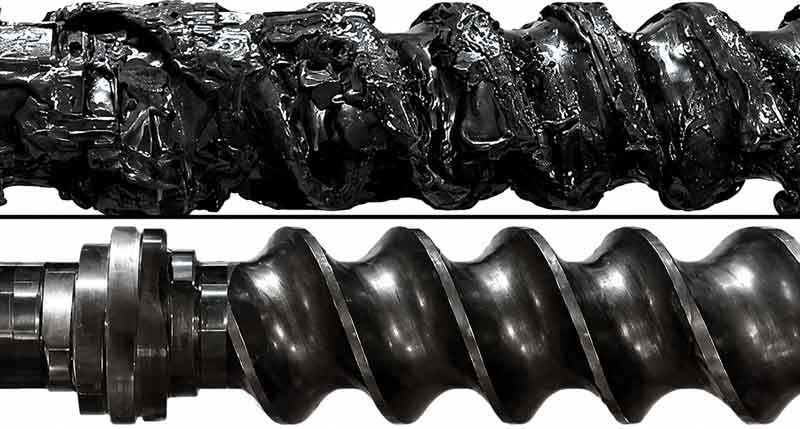

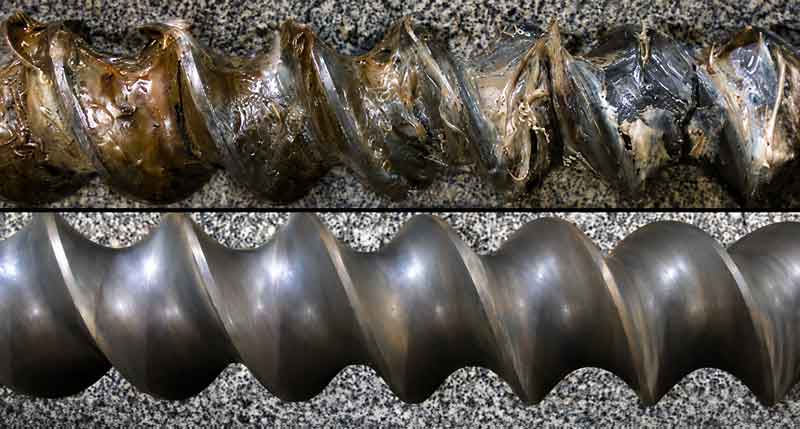

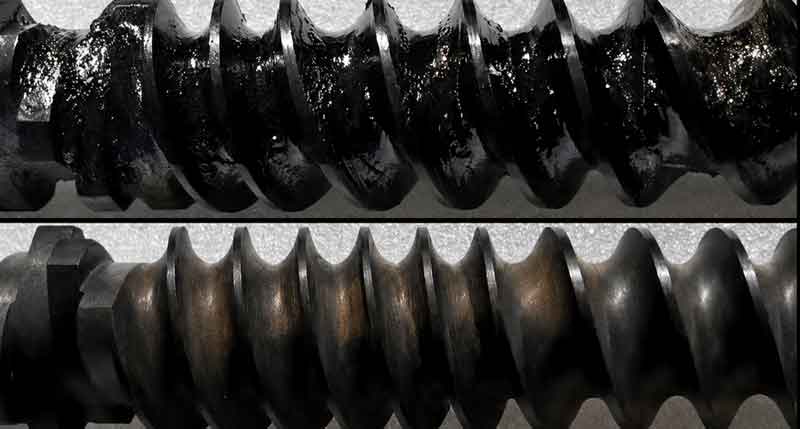

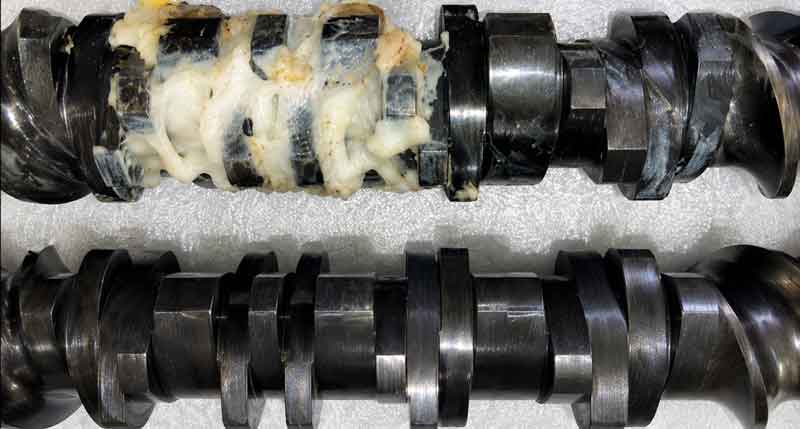

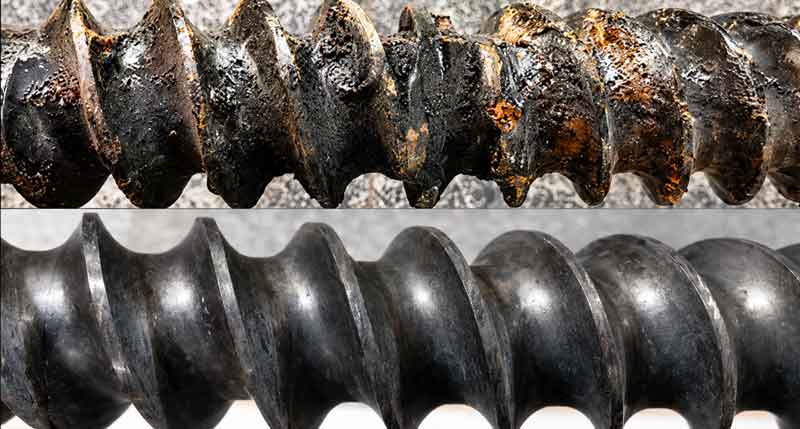

The images below show before-and-after cleaning results for different materials and applications, demonstrating the machine’s ability to restore screw cleanliness and improve maintenance efficiency.
BOPA
PPS
PA6+Glass Fiber
ABS
Powder Coating
TPE
PEI
PC
